Linear Bot

✓ Python SDK✓ Full Mobile Manipulation✓ Height Adjustment

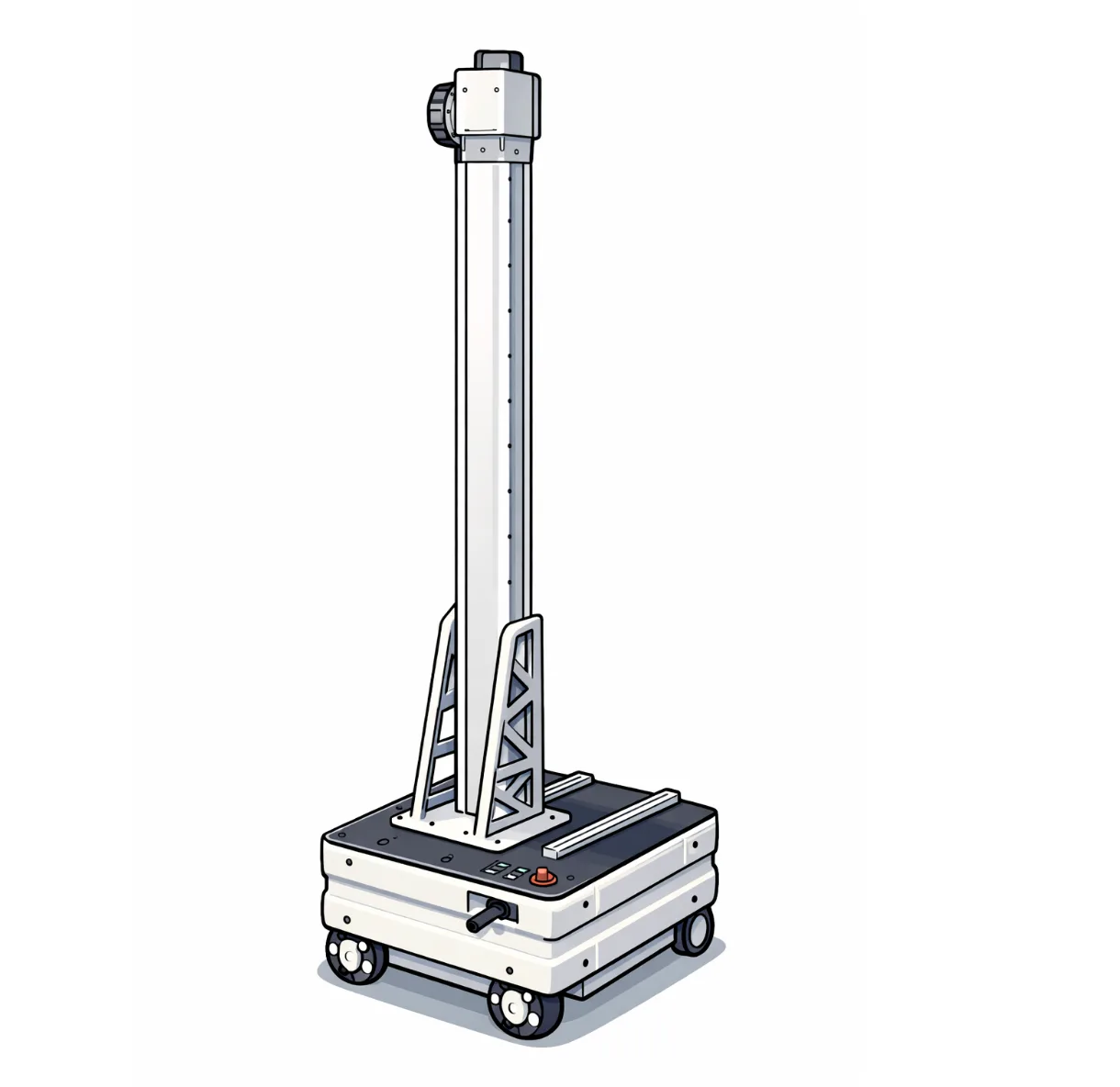

Linear Bot is the Flow Base combined with a vertical linear rail actuator. The linear rail adds a height axis to the omnidirectional base, enabling the mounted YAM arm to reach objects at varying heights — from floor-level to shelf-height — without repositioning.

System Architecture

┌─────────────────────────┐
│   YAM Arm               │  ← 6-DOF manipulation
├─────────────────────────┤
│   Linear Rail           │  ← Vertical axis (Z height)
├─────────────────────────┤
│   Flow Base             │  ← XY + rotation (holonomic)
└─────────────────────────┘

The three subsystems are controlled together through a unified Python API, giving the robot 9 degrees of freedom (6-DOF arm + 3-DOF mobile base including linear rail).

Key Features

• Vertical height axis — linear rail extends and retracts under API or remote control
• Limit switches — hardware safety stops at both rail ends; auto-home on initialization
• Brake management — brake automatically released on init, engaged on shutdown
• Integrated API — 4D base velocity commands [x, y, θ, rail_vel]
• Safety timeouts — both base and rail stop after 0.25 s without a heartbeat

Specifications

Parameter	Value
Mobile base	Flow Base (holonomic)
Vertical actuator	Linear rail with DM-series motor
Arm (typical)	YAM or YAM Pro
Total DOF (arm + base + rail)	9
Rail control	Velocity [rad/s]
Rail velocity timeout	0.25 s
Rail home	Lower limit (on init)

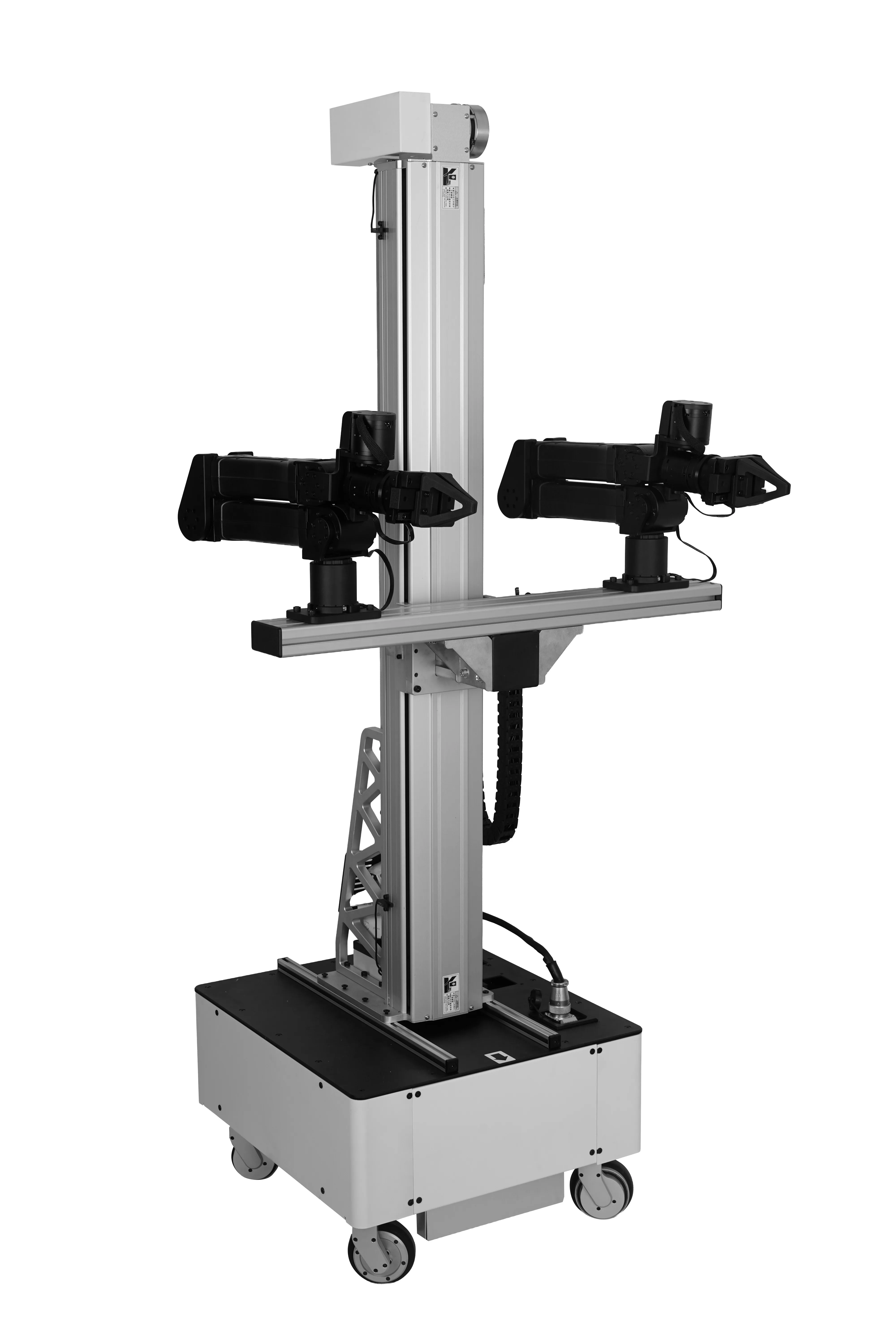

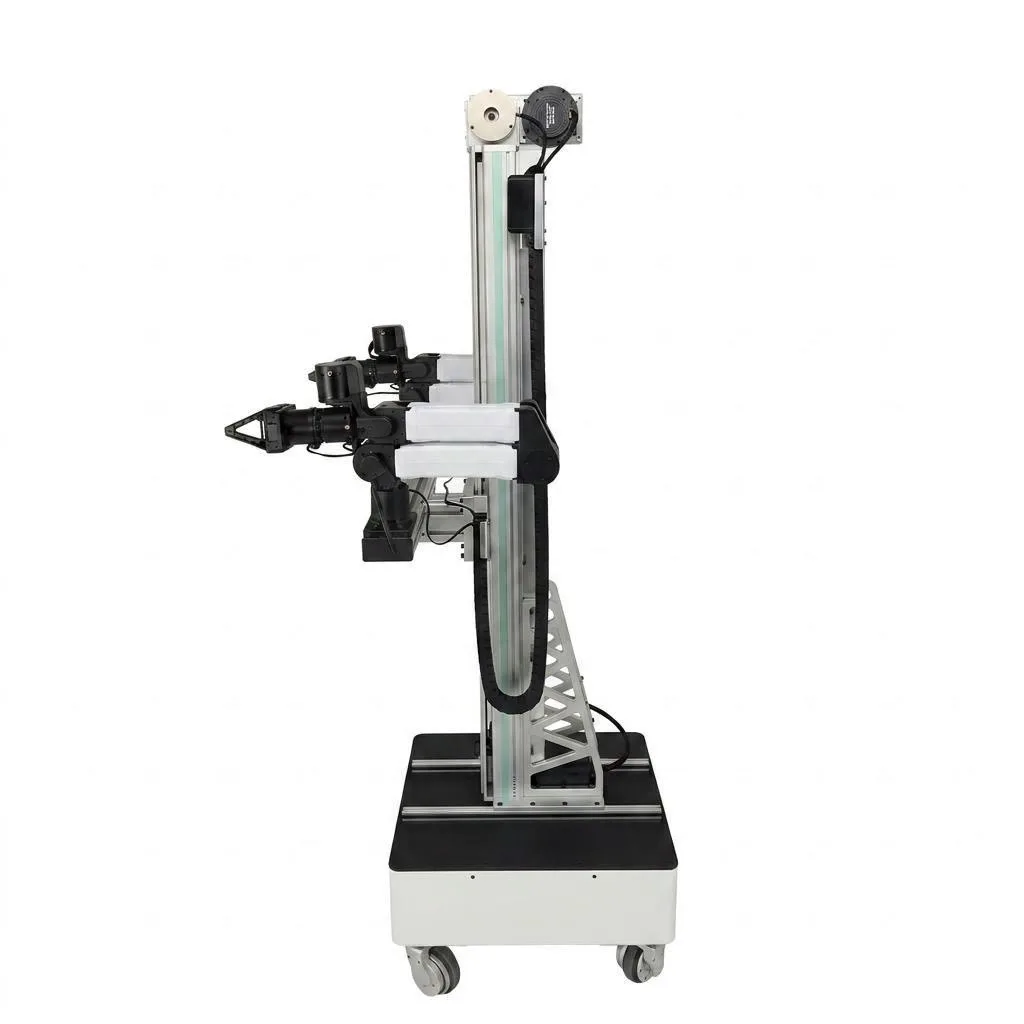

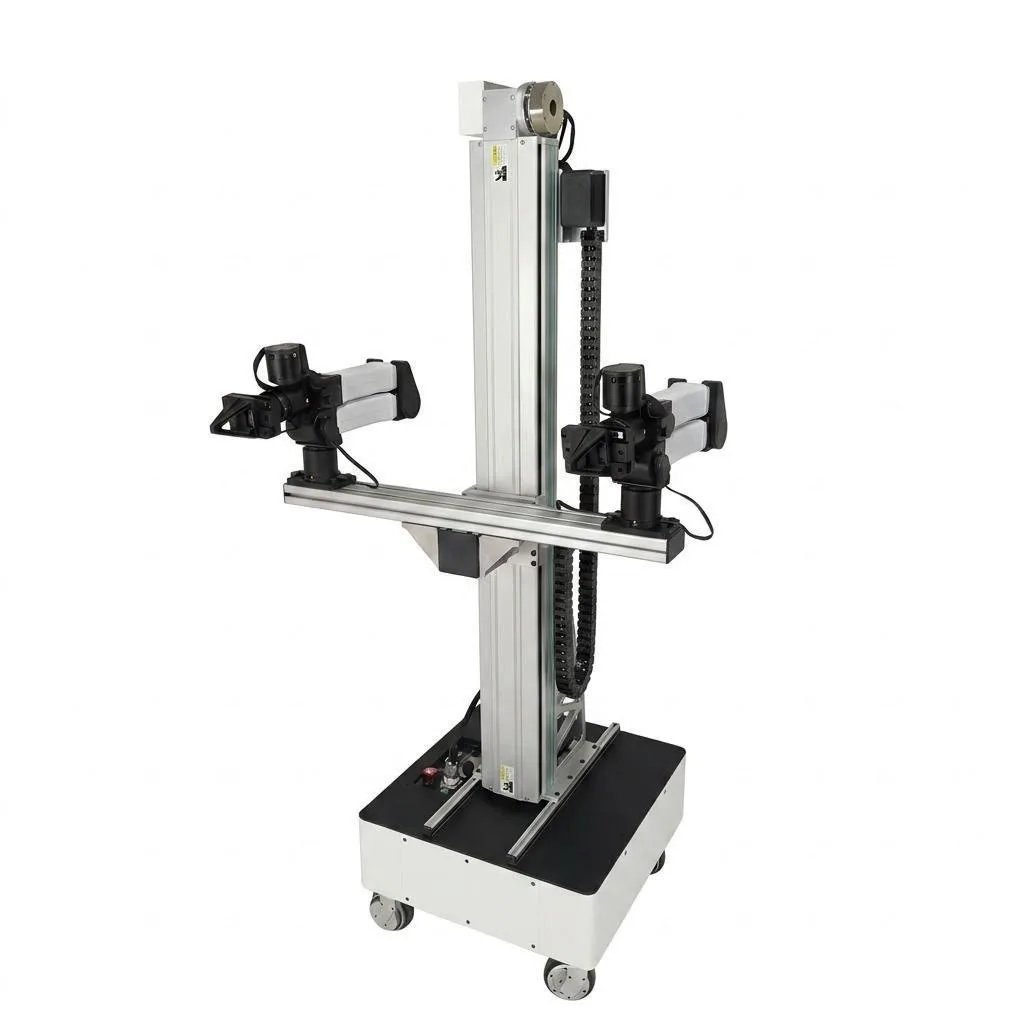

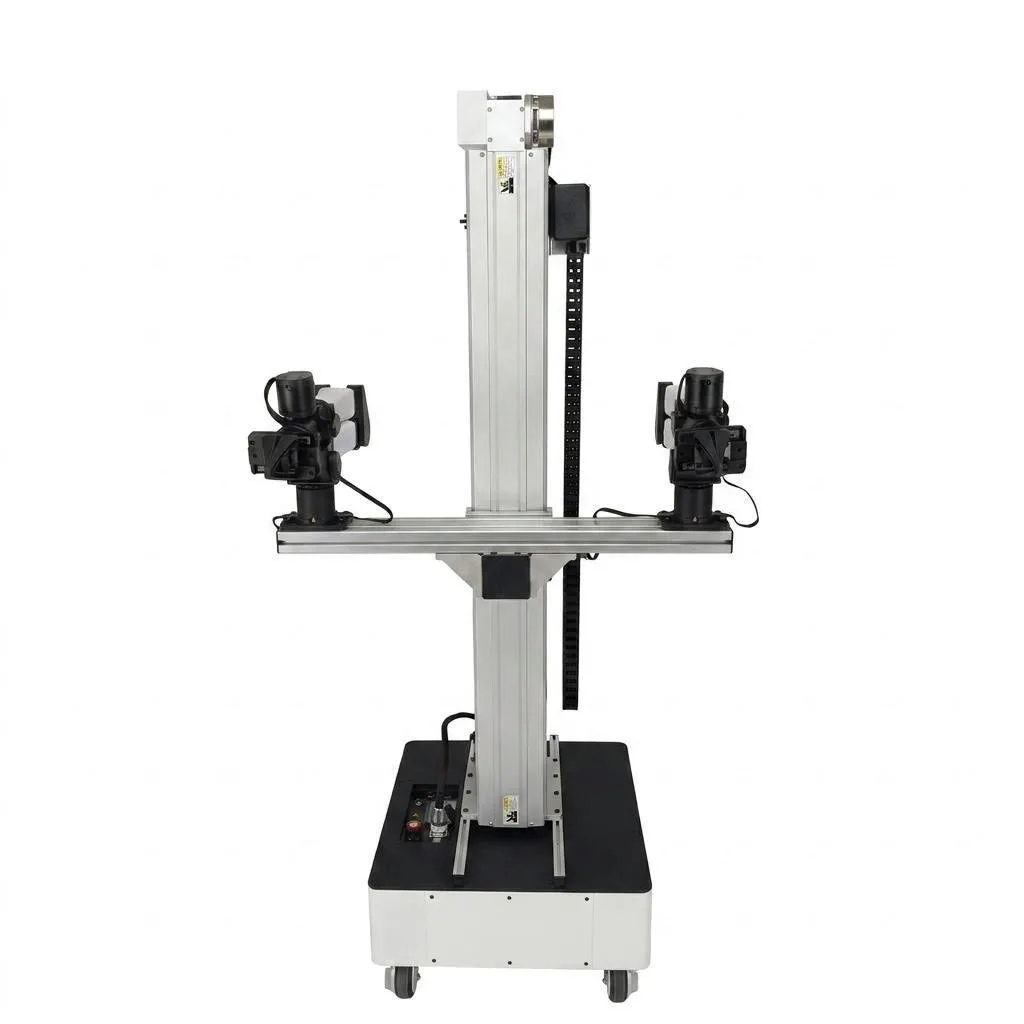

Photos & Videos

🎬

Video — Coming Soon

Linear Bot navigating to a shelf, extending the rail to the correct height, and using the YAM arm to retrieve an object. Full task, 1–2 minutes.

🎬

Video — Coming Soon

Time-lapse or sped-up footage of Linear Bot performing repeated fetch tasks in a simulated warehouse environment.

Hardware Setup

Linear Bot = Flow Base + vertical linear rail + mounted YAM arm.

Prerequisite

Finish Flow Base setup first — the chassis is identical.

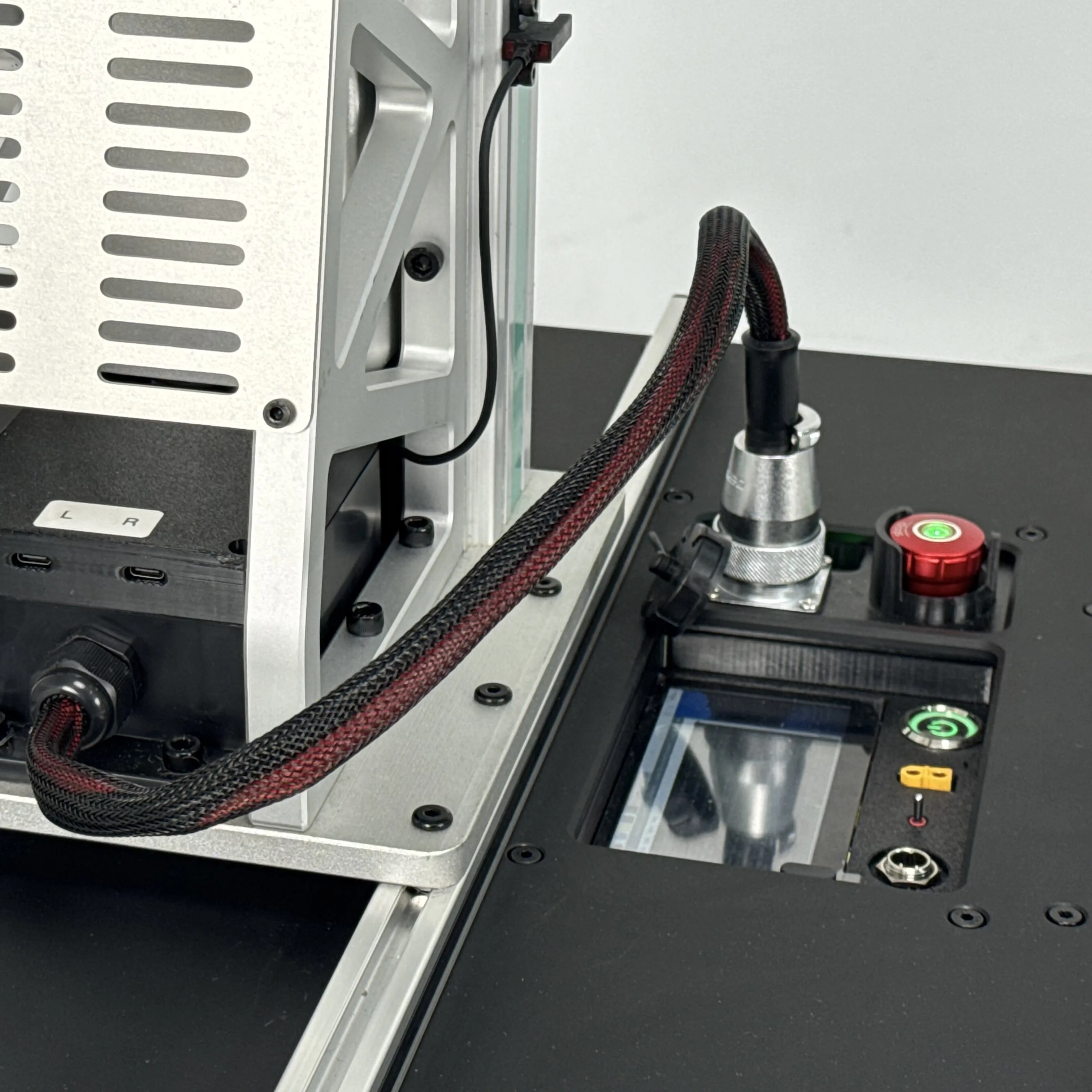

1. Verify the Flow Base section works

• [ ] Battery installed, E-stop released
• [ ] CAN selector switch UP (Pi mode)
• [ ] Successfully SSH into the Pi (ssh i2rt@172.6.2.20)
• [ ] Joystick moves the base in XY

2. Linear rail homing

The vertical rail homes to its lower limit switch on boot.

• [ ] Clear the space below the rail
• [ ] Power-cycle — rail should drive down until it hits the limit, then stop
• [ ] Verify both limit switches with:

  python i2rt/flow_base/flow_base_client.py --command get_linear_rail_state --host 172.6.2.20

3. Mount the YAM arm

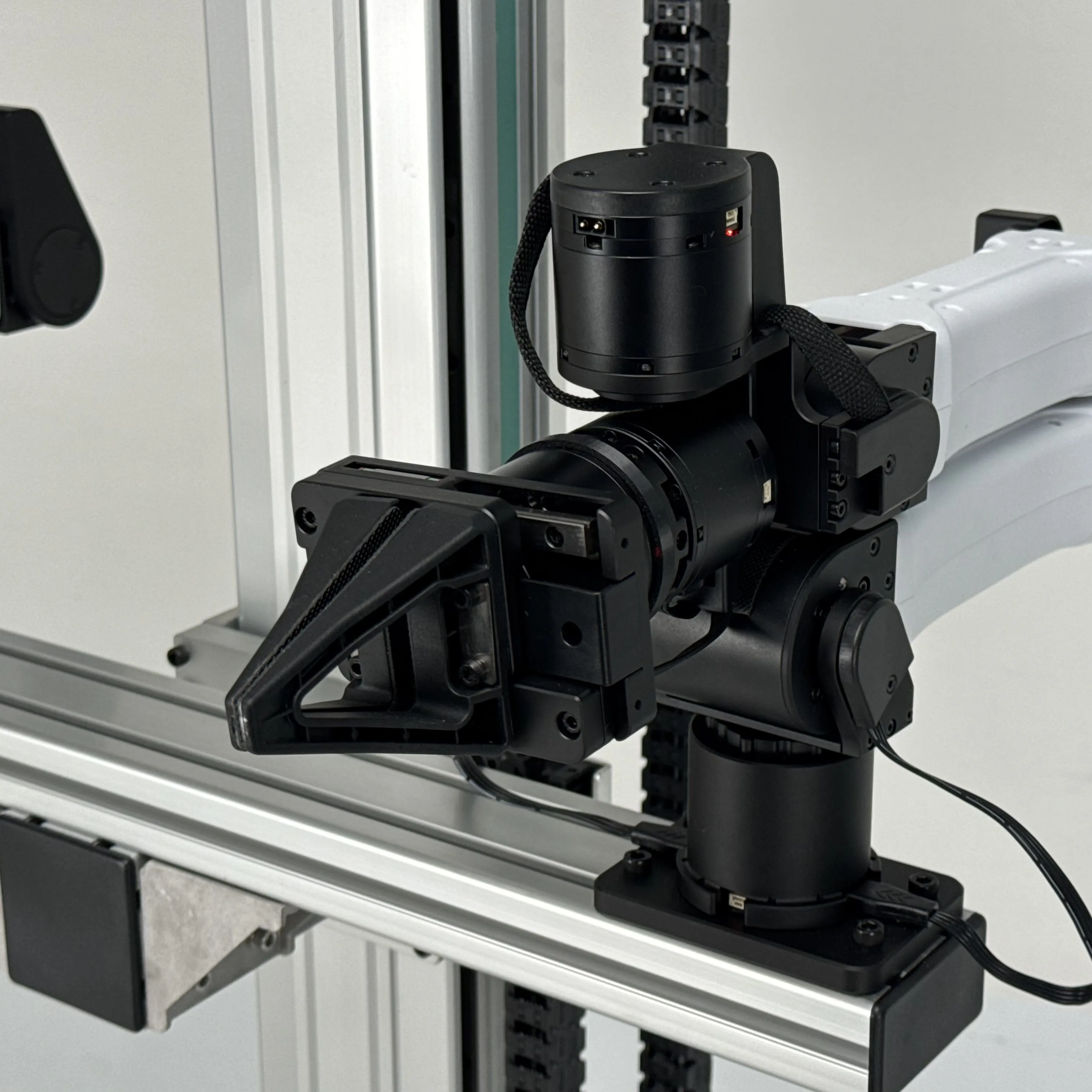

• [ ] Bolt the arm to the rail carriage top plate

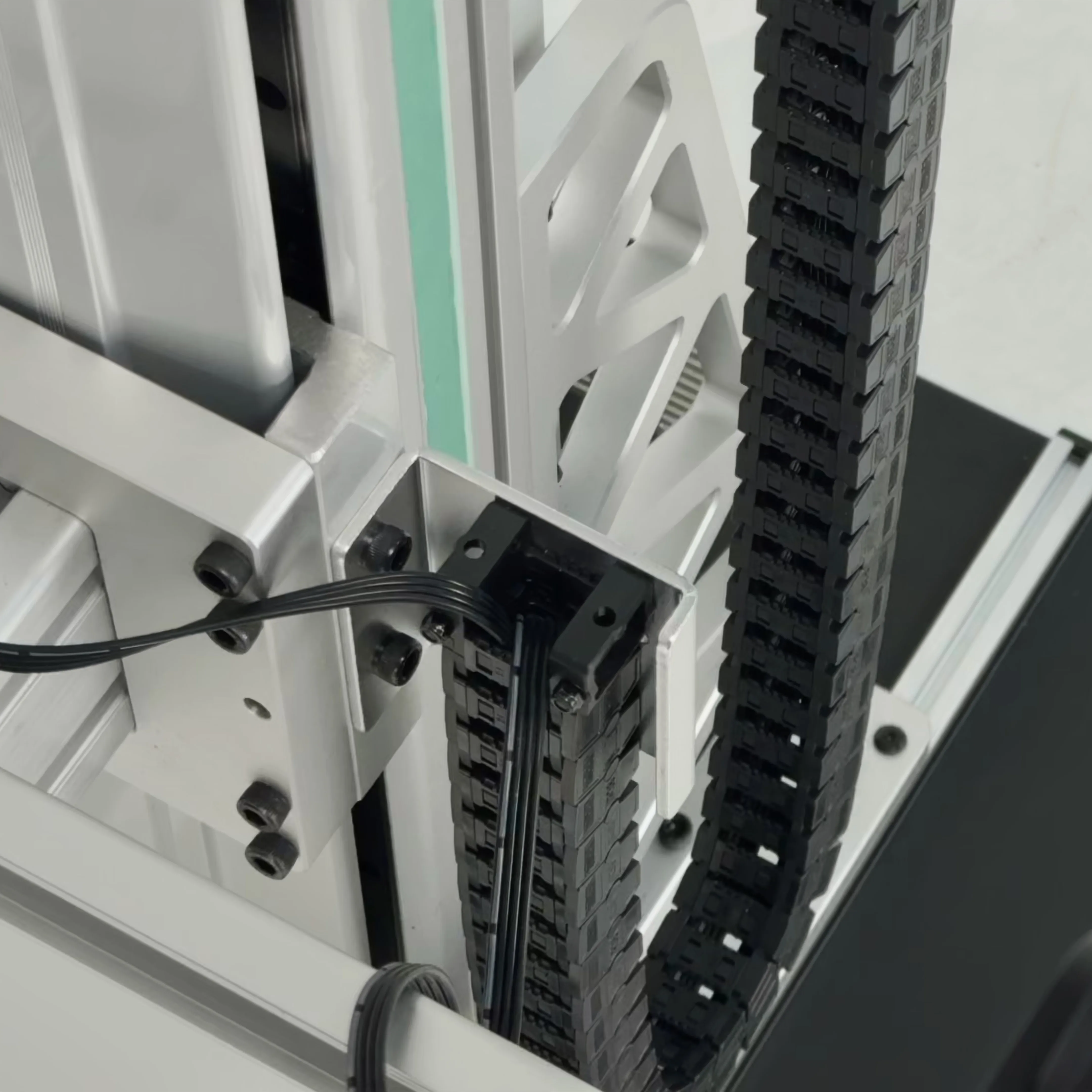

• [ ] Route the arm's CAN cable through the rail cable chain
• [ ] Connect to the on-board CANable adapter

4. Power on the arm

• [ ] Verify all CAN devices are visible from the Pi
• [ ] Test arm floating mode:

  ssh i2rt@172.6.2.20
  python i2rt/robots/get_robot.py --channel can0 --gripper linear_4310

---

Quick Start Demo

Drive the Flow Base, lift the rail, and command the YAM arm — all from one Python script.

1. Joystick (base + rail)

ssh i2rt@172.6.2.20
python i2rt/flow_base/flow_base_controller.py

Input	Action
Left joystick	Base XY translation
Right joystick X	Base rotation
Right joystick Y	Linear rail lift
Left2	Override API commands

2. Combined Python API — drive + raise rail + arm

from i2rt.flow_base.flow_base_client import FlowBaseClient
from i2rt.robots.get_robot import get_yam_robot
import numpy as np
import time

# Enable linear rail support on the client
client = FlowBaseClient(host="172.6.2.20", with_linear_rail=True)
robot = get_yam_robot(channel="can0")

# 4D velocity command: [vx, vy, theta_dot, rail_velocity]
client.set_target_velocity(np.array([0.1, 0.0, 0.0, 0.2]), frame="local")
time.sleep(2.0)

# Stop everything
client.set_target_velocity(np.zeros(4), frame="local")

# Inspect rail state
print(client.get_linear_rail_state())

client.close()
robot.close()

3. Rail-only control

client.set_linear_rail_velocity(0.5)   # rad/s — raise
client.set_linear_rail_velocity(0.0)   # stop
client.set_linear_rail_velocity(-0.5)  # lower

Linear rail safety

The rail homes to the lower limit on init and has hardware limit switches. Commands time out after 0.25 s of inactivity.

Python API Reference

For the full SDK (FlowBaseClient methods, frame conventions, etc.), see the Flow Base API Reference — Linear Bot uses the same client with with_linear_rail=True.

from i2rt.flow_base.flow_base_client import FlowBaseClient

client = FlowBaseClient(host="172.6.2.20", with_linear_rail=True)

# Move forward + raise rail simultaneously
client.set_target_velocity([0.1, 0.0, 0.0, 0.05], frame="local")
#                           x    y    θ    rail_vel

# Get rail position and limit switch states
state = client.get_linear_rail_state()
print(state)  # {'position': ..., 'velocity': ..., 'limit_switches': ...}

# Stop rail
client.set_linear_rail_velocity(0.0)

Important Notes

Auto-homing on init

The linear rail homes to the lower limit switch on every initialization. Ensure there is clearance below the carriage before powering on.

Stopping the rail

Always set velocity to 0.0 to stop the rail. Do not try to engage the brake directly — the system manages brake state automatically.

Pricing

Starting at $18,999. Contact sales@i2rt.com for configuration options.
